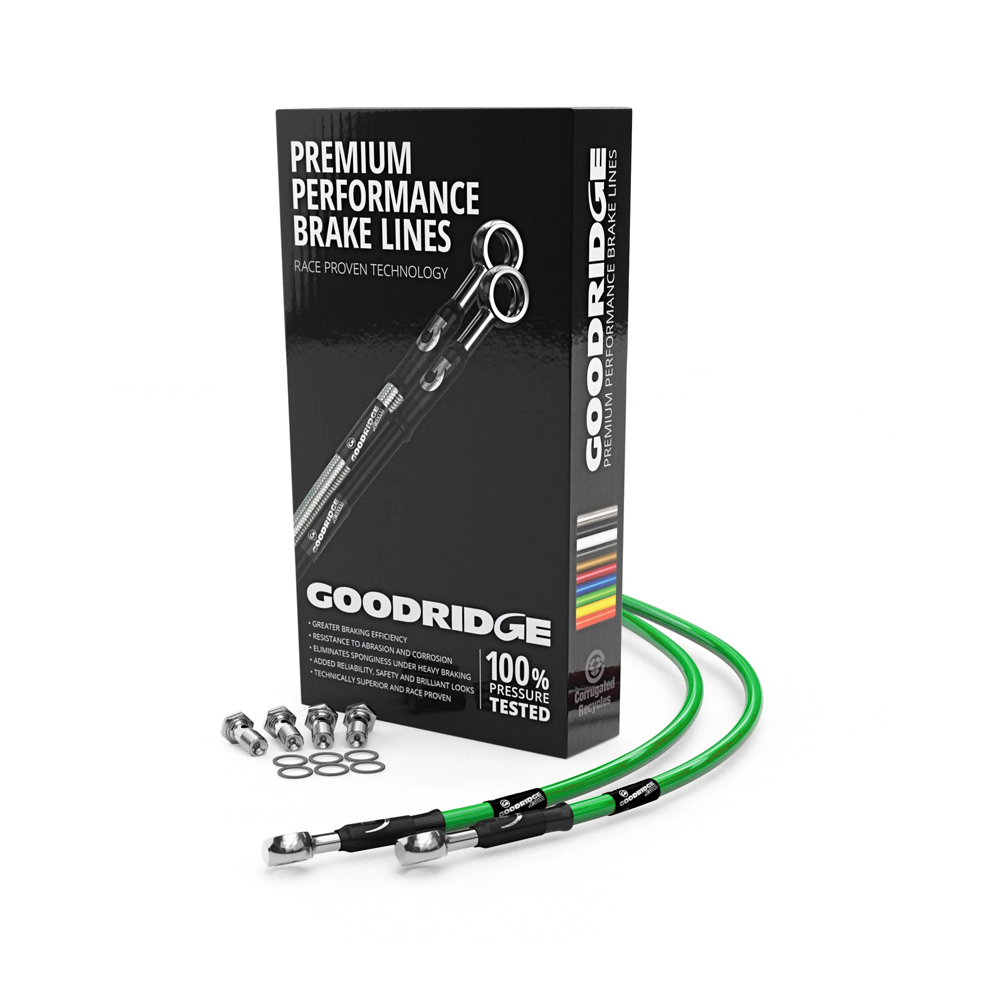

Braided Brake Line Rear Green

Goodridge Braided Brake Lines

• Improves brake feel at the lever
• These lines are custom and made to order
• Turnaround within 2 business days from ordering (you wlll be contacted if there are delays)
• Availability may very, you will be contacted if there are delays
• Full Make Year Model needed to confirm exact fitment
• Standard lengths are for standard bar height, please advise if more length is required
• Please contact for further information

Brake Lines in detail.

Goodridge stainless steel motorcycle brake and clutch line kits feature the finest quality hose, consisting of a PTFE inner and stainless steel braided outer coated in a plastic protective coating in the colour of your choice.

Braided brake line eliminates the spongy feel under extreme braking conditions giving greater braking efficiency as well as providing a superior resistance to abrasion and corrosion.

Goodridge kits not only provide reliability and safety, but also brilliant looks that improve the appearance of any bike. Goodridge prides itself in being able to supply stainless steel hydraulic brake line kits for any make or year of motorcycle, be it British, Japanese, American, German or Italian.

• Goodridge stainless steel braided brake and clutch lines are 100% ADR APPROVED in every state in territory in the WORLD
• Meets the requirements of DOT and TUV .Goodridge set the standards, the others followed.
• We can supply a complete build-a-line program so you have a totally universal brake line program at your fingertips
• Whether you’re building a custom bike or fitting a set of higher or lower bars this program caters for the lot

Technical Details

High speed, constant rapid gear changes and fast stops put great strains on competition hydraulic systems, where failure can be disastrous. The light weight and extremely flexible PTFE hose strongly resists expansion under high pressure and temperature, and provides consistent brake and clutch pressure giving firmer and more efficient operation without that spongy feeling.

PTFE inner tube is compatible with all brake and clutch fluids with outer cover of corrosion and fire resistant stainless steel.

Temperature range: -73 degrees Celsius to 232 degrees Celsius.

• Bore size: 3.5mm
• PTFE wall thickness 1.0mm
• Braid O/D 6.45
• Cover wall thickness 0.5m
• Max W.P. pressure 4250 basic
• Weight 0.088kg/m
• Burst Pressure of over 12,000PS1
